Jun 17, 2018 - Aug 16, 2018
Tools used: ReactJS ExpressJS Node.js MongoDB WebSocket
At Qualys, my project was to develop a completely new, standalone UI to load test the Qualys cloud platform's Passive Scanner (PS) microservice. While the scripts to generate and run the actual load testing HTTP requests were being developed by a different part of the team in Node.js, my project was to integrate a frontend UI with the scripts to make load testing a less cumbersome task with interpretable statistics and visuals.
I first developed a server using ExpressJS and Node.js that served the frontend UI, and also received inputs from the load testing scripts. For the frontend itself, I used native HTML, CSS, and ReactJS without additional libraries to create a single-page web UI. The frontend communicated with the server using WebSockets as opposed to HTTP requests. This was a crucial design choice because load testing generates a lot of data and a persistent connection provided by a WebSocket is useful to continually update the UI.
The webapp was developed to show the same results and view to multiple users. Form field data, progress data, and any other data that was displayed through the UI was shared across all instances of the webapps through the use of WebSockets. This meant that only a single load test could be run at a given time but everyone could access the progress live and simultaneously.
The UI had a few different screens: a run configuration form to kick off load testing, a display page that showed the test's progression, and a dashboard that displayed historic results through charts using highcharts. The following are a few screen captures of the webapp:

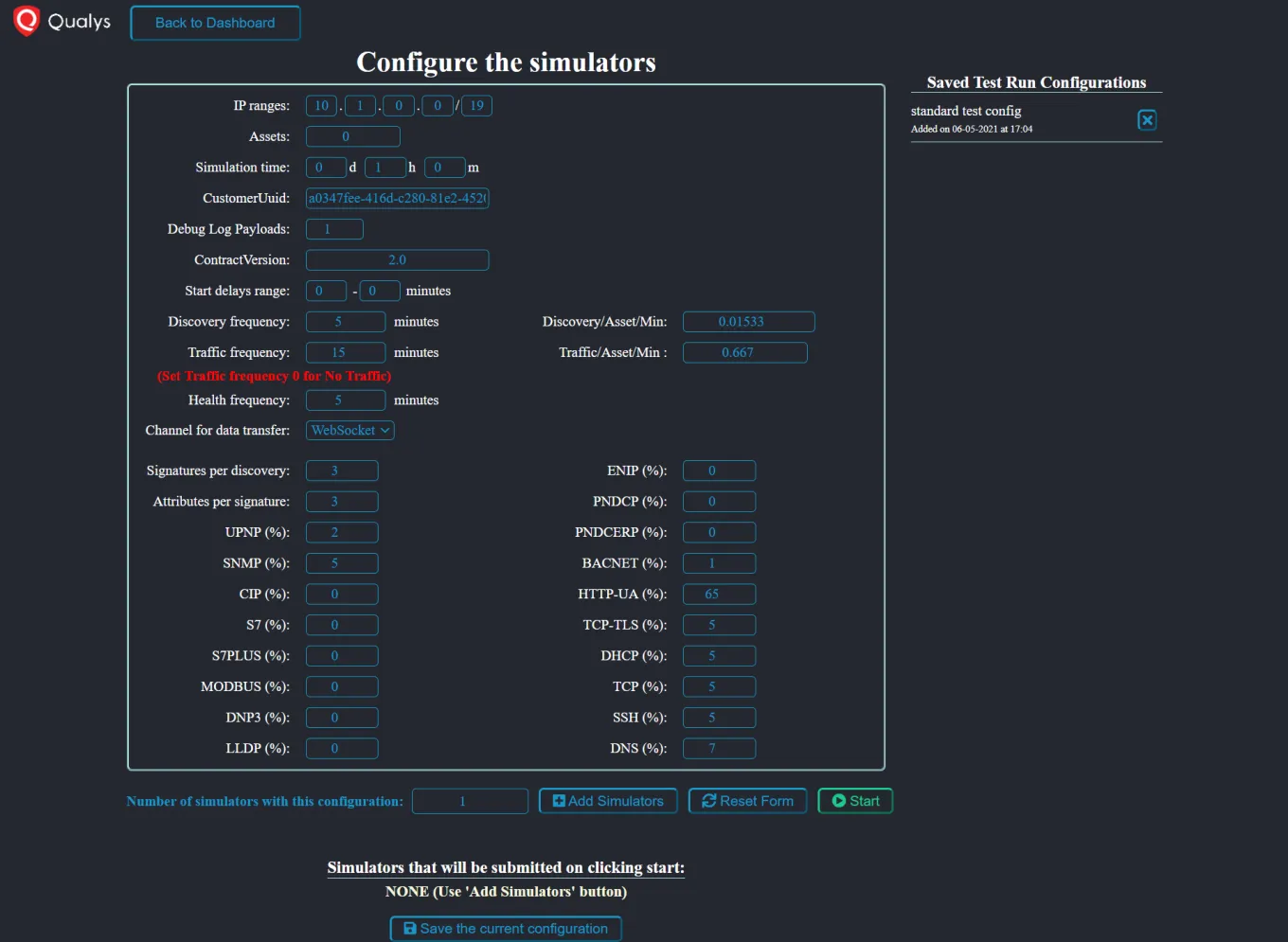

The form screen

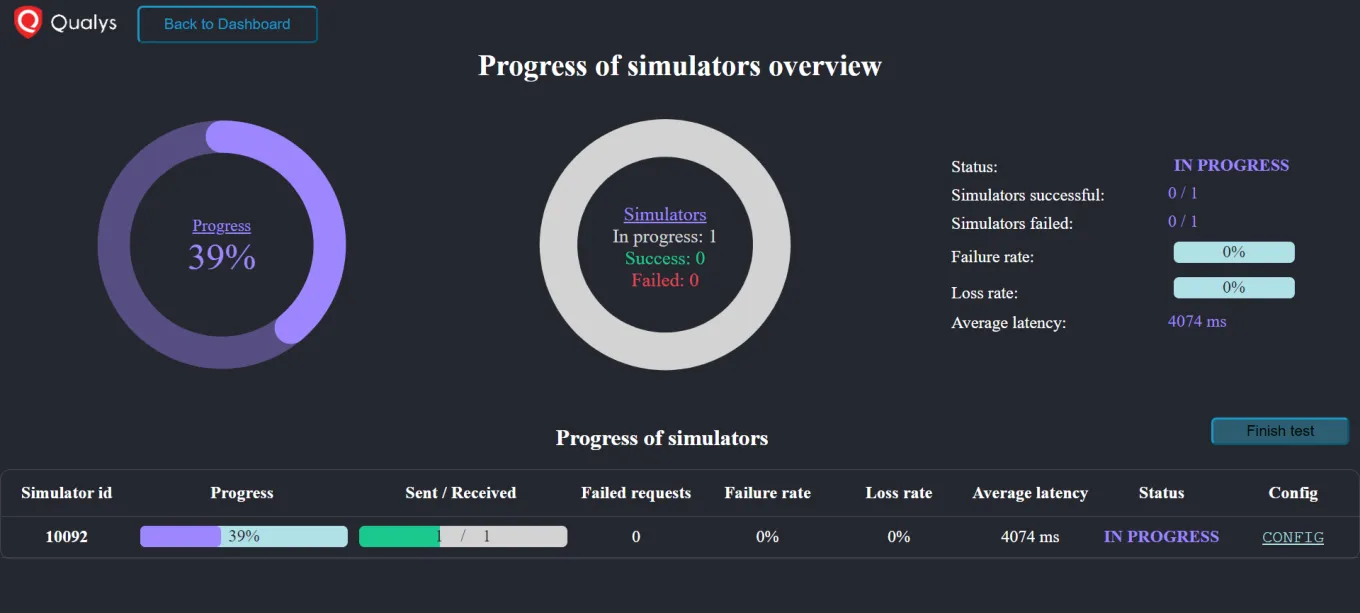

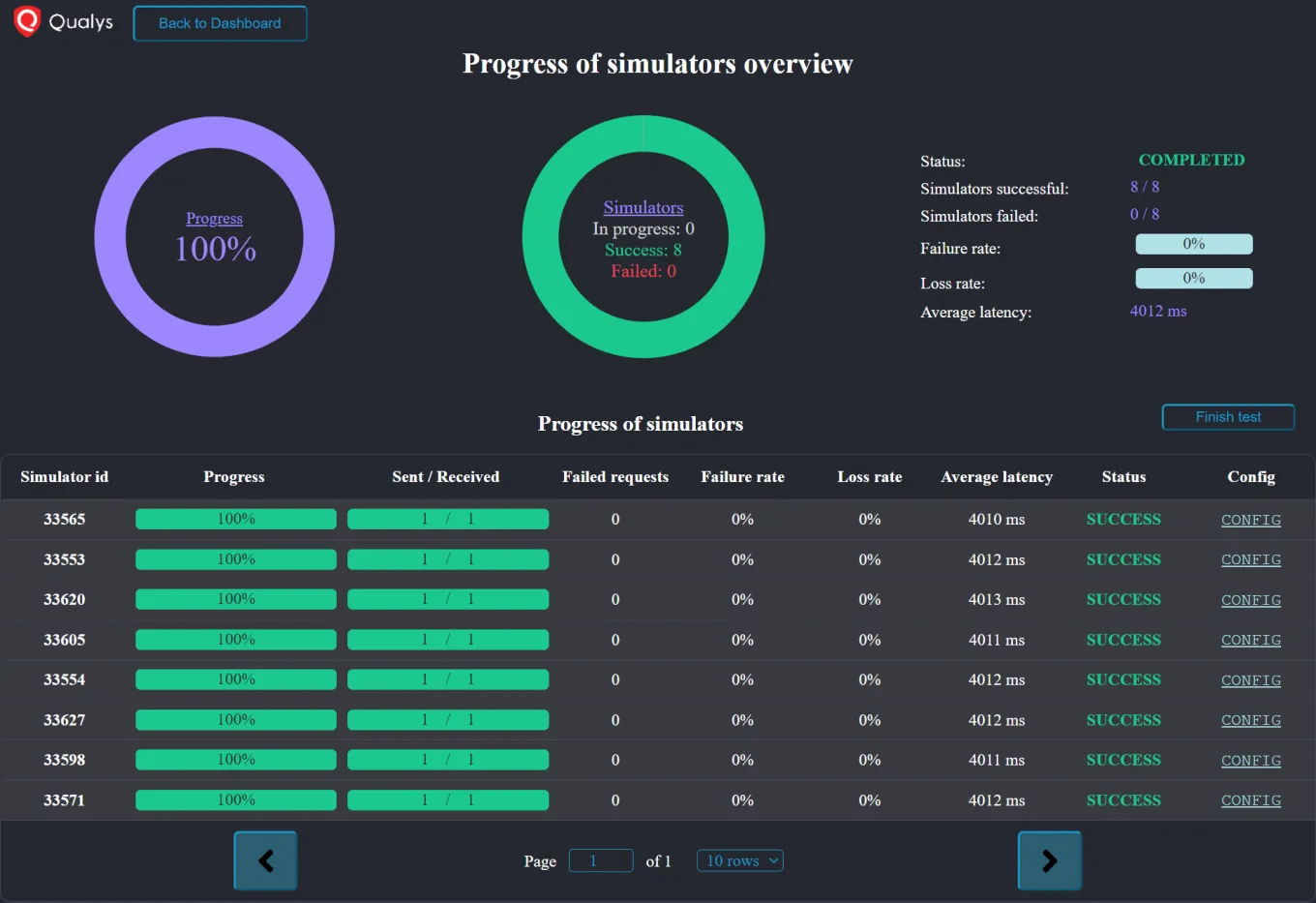

The progress screen while running and after completion

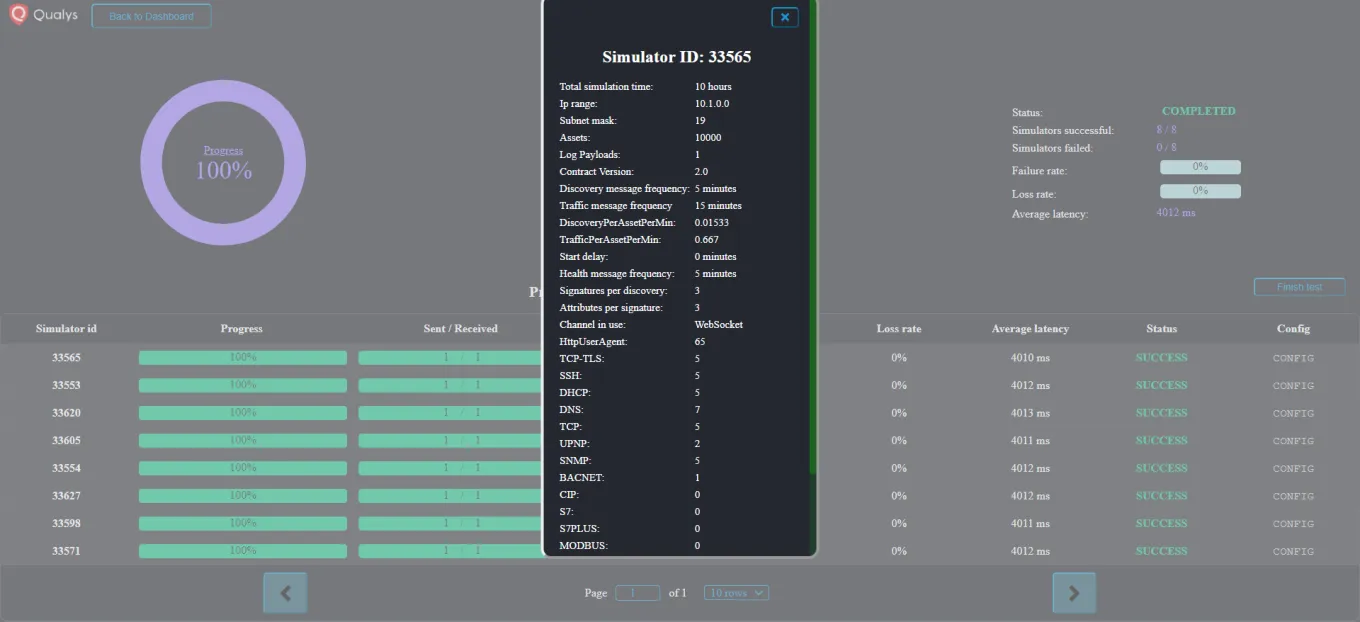

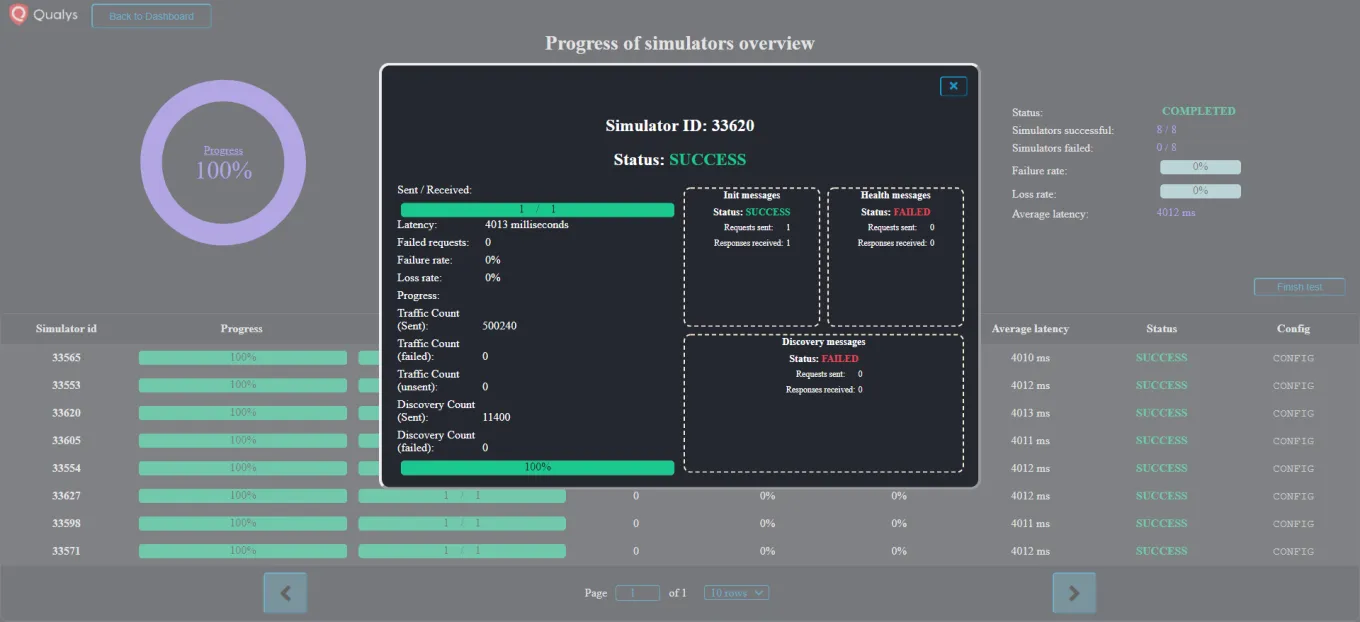

The config and progress of a single simulator

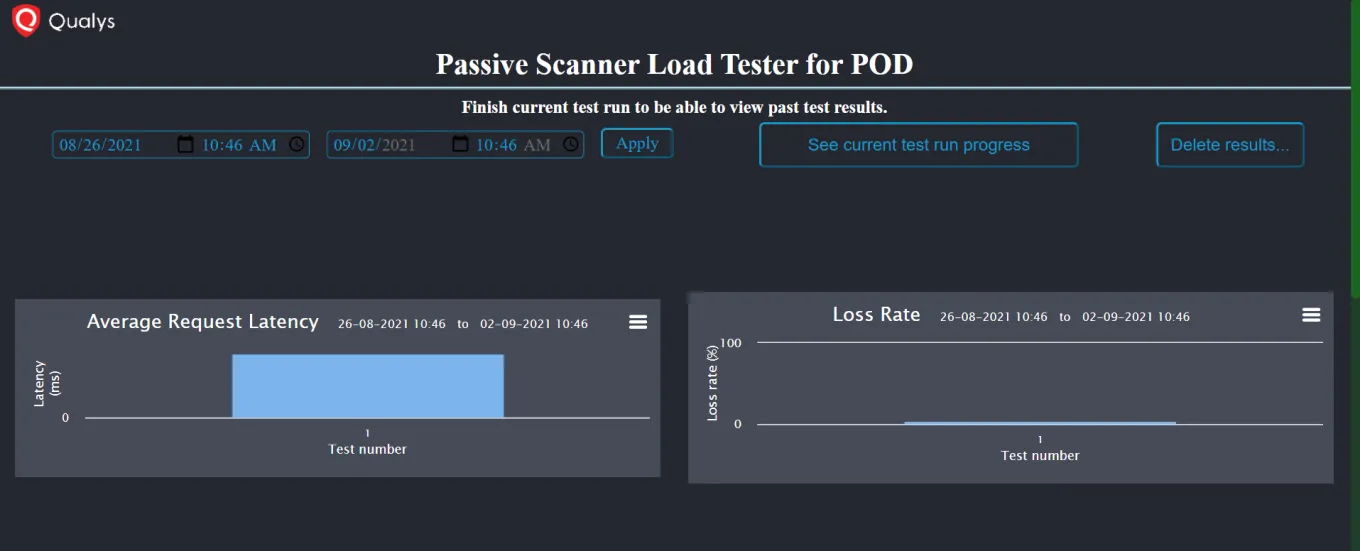

The dashboard of graphs
The webapp was designed to have long-term storage of results and run configurations using MongoDB. However, the webapp also had an "offline" mode when it was not connected to the database. This mode allowed starting load testing with some functionality disabled. Disabled functionality in the offline mode included the use of saved run configurations, saving the results to the database, and accessing the dashboard to view historic charts.
During the internship, while developing a system to receive data in the server and propagate it to the UI, I hit a dependency roadblock. I had to interact with load test script developers to design a mutual config for how the data would be formatted and what all data would be provided by the scripts. However, after being roadblocked by the implementation of the config for a while, I worked with the other developers to overcome this roadblock. In the process, I learned about multi-processing for the first time. I implemented a multi-process queue in Node.js that was shared by the processes in the load testing scripts and the server as well. This allowed a seamless transfer of data between the scripts and the server without any additional network requests.
Towards the end of my internship, another team noticed my work and asked if a similar web interface could be implemented for the load testing of the Network Access Control (NAC) appliance. I modified the server interface of the webapp to receive network traffic from a UDP socket instead of the data from the Passive Scanner load testing scripts. Minor changes to the UI and database allowed for a fully functioning framework for the NAC appliance's testing as well. Working with this other team gave me some basic insight about command-line networking tools such as netstat, netcat, tcpdump, and wireshark.
Overall, it was a very fruitful internship in which I learned about a lot of web development tools and languages, and also got an opportunity to work on the actual load testing scripts that provided the data to the UI. As a bonus, I learned some OS and networking concepts much earlier than I was formally introduced to them at University.
