The Development Journey for Choosing an Architecture

Tags: Tech

Oct 13, 2021

11 min. read

This blog describes the journey that I, a developer took to decide the architecture to use for the implementation of a recent project I have been working on. It demonstrates the thought process a developer goes through to come to a resolution.

Let's commence the journey!

When you have an idea that you want to implement, as an individual developer, or maybe even as a part of an organization, you look for the cheapest and easiest solutions for the architecture of your implementation. That is exactly what I did as well when I started the implementation of my web project (top secret). My project involves dealing with a lot of data, but originally, I thought that it wasn't nearly enough data to justify the need for a backend. I decided to stick with my familiarity and host a static website for free on GitHub Pages as I have previously done (this website!).

Static website with GitHub Pages

Problem 1

As I started generating and cleaning my data, I realized that in a static website, any data that I store would be directly accessible by anyone visiting the website by simply opening the developer console in the browser and looking at the network traffic or the sources. This was a no-go in my situation as I needed the data to not be visible directly to the user. I researched numerous ways of encryption and decryption and decided to use AES to encrypt all the data and only decrypt something when it is needed. I thought that would be it, but that's when I ran into another problem.

Problem 2

As I generated more data, I realized I had upwards of 600MB of data. Now, for a static website, this is a problem, because every time the website is accessed, all that data will have to be loaded by the browser. Slow internet connections will really struggle with the website. However, I was tunnel-visioned to use a free static website host and was determined to make it work. But with more time and a few days of wasted work, I decided to abandon the static website approach and concluded that I would need a proper backend or at least a database.

The quest for a database

The data that I had was a lot of nested JSONs (up to 5 or 6 levels deep). This data was hierarchical in nature and a structured database such as MySQL or PostgreSQL would be of no use, or at the very least, it would be a lot of work to transform the data into a format that would suit those structured databases. Alright, so let's look at the options.

Heroku

I first looked at Heroku's free tier. Unfortunately, while Heroku did have free options to run a backend service, I wasn't satisfied with their support for NoSQL databases. They offered Redis and MongoDB. While Redis was suitable for my project, the free limit was far too low, and MongoDB was outright unsuitable based on my prior experience.

Heroku Redis

Amazon Web Services (AWS)

I then thought I would take a look at AWS. AWS offered DynamoDB, a NoSQL database with monthly free limits that were well suited for my purposes. However, I did not have a very good time with AWS in the past when I used it for two university projects (Deepfakes and Travel Scares Me) because the documentation is very unnerving, and you often have to rely on tutorials. I kept this as a backup plan if I could not find anything better.

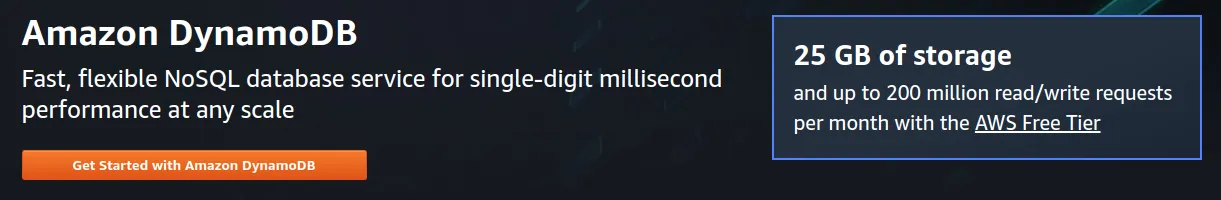

AWS DynamoDB

Microsoft Azure

Next up, Azure. I had never used or considered Azure before for any of my projects. This probably was a bias for me when I looked at Azure CosmosDB. Similar to Heroku, they offered support for MongoDB, but also for Cassandra, which I had not used before and wasn't exactly sure was right for my use case. With my existing bias, when I noticed that CosmosDB was only free for 12 months, I steered away (sorry Azure).

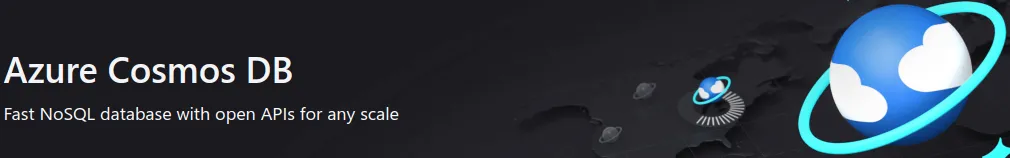

Azure CosmosDB

Google Cloud Platform (GCP)

Last stop was GCP. I had previously only used GCP for getting access to API keys for Google Maps and Google Translate. I had some familiarity with their console. So, imagine my delight when I learned that the Cloud Firestore was created to solve problems almost identical to mine. Remember when I said my data was all JSONs? Well, straight from Firestore documentation: "You may notice that documents look a lot like JSON. In fact, they basically are. ... in general, you can treat documents as lightweight JSON records."

Cloud Firestore

However, this time I wanted to be more careful and make sure all my requirements can be fulfilled by GCP before moving forward with Firestore. I found that Google Compute Engine (GCE) provided a free virtual machine (VM) instance that, from a preliminary estimate, could host both my frontend and backend. I was all set, or so I thought.

The data dilemma

Shock #1

As I said before, I had a lot of data. However, this data was unchanging. This meant that I had to write the data to Firestore only once, and read as necessary in the future. As I thought about that, I was hit with an unpleasant realization. If I had to write 600MB of data to Firestore as individual JSON documents, that would amount to over 5,500,000 writes. The daily limit for writes to Firestore is 20,000. It would take me 9 months to write all my data to Firestore if I wanted to stick to free limits! At that one moment, I wished I had chosen DynamoDB which has a monthly limit as opposed to a daily limit. But I decided to soldier on.

I found ways to reduce the size of my data to 150MB and even shift some of the data computation to the backend instead of computing everything beforehand and pre-caching. This brought down the writes to about 6000! So, I immediately decided to test this - at worst I would lose a day or two messing with the data while staying under the free limits...

Shock #2

Firestore reads have a limit too, 50,000 a day to be precise. By shifting a majority of the computation to the backend from pre-caching, I had essentially skyrocketed the number of reads I would be needing to serve each request by the frontend. I was needing close to 1300 reads to serve a single request! This means I would only be able to serve 38 requests a day, which is simply pathetic. This essentially made the idea of using Firestore for pre-caching the data unviable.

Resolution

After battling with different amounts of pre-caching in Firestore, something suddenly clicked in my mind. Why do I even need to pre-cache in Firestore!? I could pre-cache in the backend itself in-memory. It would not only be faster to work with in-memory computations, but I won't have to deal with Firestore as much anymore. It would result in a lengthy cold start for the first request because of the minimal amount of reads from Firestore and some relatively heavy computation involved in the pre-caching, but this was something I was ready to deal with. So now all that was left was to set up instances for the frontend and backend.

Hosting the website

When I had picked GCP as the cloud platform to host my website, I was only aware of Google Compute Engine (GCE) as a platform to host services.

Google Compute Engine (GCE)

GCE's free tier includes a single e2-micro instance, which provides 0.25 vCPUs (virtual CPUs) and 1GB RAM. Even though my preliminary estimates had convinced me that this would be sufficient to host both my frontend and backend, I had started to second guess that estimate. Additionally, working with GCE is akin to working on a fresh virtual machine because GCE is an Infrastructure as a Service (IaaS). I was not keen on having to deal with disk images and especially network routing, so I started looking for alternatives within GCP.

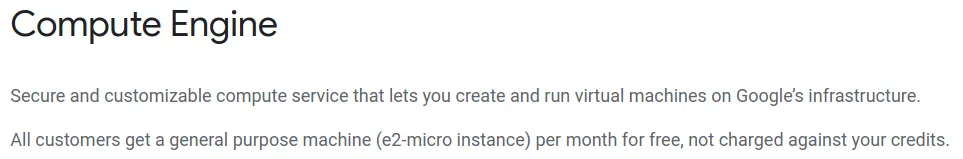

Google Compute Engine

Google App Engine (GAE)

As I scoured the GCP documentation and products, I found GAE. As opposed to GCE, GAE is a Platform as a Service (PaaS). GAE provides F-instances and B-instances which each scale in a different manner - F-instances autoscale, B-instances are manually scaled. GAE's free tier includes 28hrs/day of F1-instances (256MB RAM, 600MHz CPU limit) and 9hrs/day of B2-instances (512MB RAM, 1.2GHz CPU limit). Historically, F-instances were intended for frontend services, and B-instances were intended for backend services. Though that is not the case anymore, I decided to follow it that way.

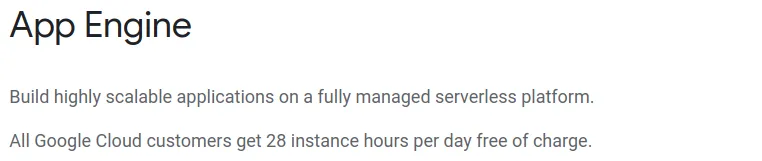

Google App Engine

I deployed my frontend and backend services to GAE using an F1-instance and a B2-instance respectively. It was as simple as creating two YAML files for the configuration of the instances and another YAML file for the routing between the instances. The frontend service worked perfectly without any hassles, however, my backend service showed some erratic behavior by randomly shutting down.

I wasn't exactly sure what the problem was so the first thing I did was to run memory profilers on my backend application. I learned one important lesson by doing this. There is a difference between how much space the data takes on disk in JSON format as compared to using Python dictionaries in memory. While on disk the data was 150MB, the backend process was using closer to 380MB. Interestingly, this was still within the B2-instance memory limit. I struggled to find an answer for the erratic behavior and even posted to StackOverflow which I don't usually do unless I am desperate (which I was at this point).

I started to look for other solutions to the problem, and that's when I found yet another product of GCP... The gift that keeps giving, isn't it?

Google Cloud Run

I randomly found Cloud Run when I was looking at the GCP dashboard. I didn't know what it did, but it was under the same category as GAE, so I tried researching it. I learned that Cloud Run is also a PaaS product that can be used as a replacement for GAE and has even lesser maintenance overheads (no need for even a YAML configuration!) Additionally, the scaling of Cloud Run is easier to understand than having to pick from the different instance options that GAE offers.

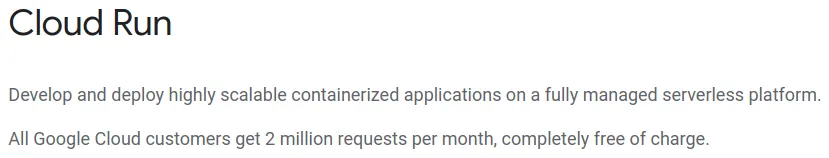

Google Cloud Run

I also learned that GAE uses virtual machines underneath (essentially built over GCE) while Cloud Run is built over Google Kubernetes Engine (GKE). Considering how much Google is now pushing Kubernetes as a scaling solution, I am surprised Cloud Run does not seem as popular as App Engine (judging based on the resources available outside documentation).

Anyways, Cloud Run had a really simple learning curve, and I could essentially move my backend service that was built for GAE to Cloud Run with almost no changes and just Dockerizing my app. I was however concerned about the free tier limits as they felt rather cryptic to the naked eye. However, GCP's Pricing Calculator seemed to promise great limits within the free tier based on my needs. Note that I still believed that 512MB of RAM would be sufficient for my service based on my App Engine experience.

I deployed my backend to Cloud Run and started testing it. To my disappointment, the service was still erratically shutting down. I dove into debugging once again. Based on a hunch and logs (yes, Cloud Run has logs!), I investigated the memory usage once again. I read about the memory_info function in the psutil module in Python that I was using for memory profiling and learned about two different metrics for the memory usage of a process! What I had originally looked at was the Resident Set Size (RSS) which amounted to about 380MB. However, what was important to consider was the Virtual Memory Size (VMS) or the total amount of memory used by a process including shared libraries (Should have paid more attention in that OS class...) Well, this VMS metric revealed that my service actually required closer to 850MB memory. I think this is a lesson to stay light on the number of libraries your application is using.

Stumped with being unable to reduce my process size significantly, I decided to simply increase the memory limit to 1GB in my Cloud Run instance. And just like that, my backend service started working as intended. However, I am still monitoring the billing aspect of this memory limit increase, which seems to be nil for the moment. In hindsight, I wonder if the shift from GAE to Cloud Run was even necessary. It does seem to bring larger benefits, more flexibility, and simpler to understand scaling of instances, so I can only hope it wasn't in vain!

Epilogue

As a developer, this blog describes a journey that probably was relatable to you if you are a developer as well. You often start with assumptions that may or may not be true. You explore different paths to try and build your product under those assumptions, but they just won't work at times. But with the endless amount of technology now available, and with the entire Cloud at our disposal, the developer journey sure has become more enjoyable.
